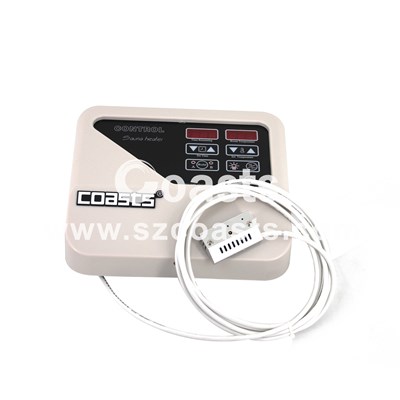

CON4 digital control panel

update: 2011.03.15
  • Characteristic and specification
  • Material downloading



CON4 digital control panel is suitable for AM-A,AM-MI,SAM-B series sauna heaters.

Function:  Sauna heater turn on/off, Sauna room light control (up to 100W), ;Error diagnose message display, Switch between temperature units (C/F); Switch between working mode A/B. In working model A, the maximum working time is 12 hours; in working mode B, you could set up to 8 hours preset time and 4 hours working time.  Temperature setting and  display (setting range: 35-100℃(95-212℉), display range:6-105℃(43-221℉).
