KSB-C series steam generator

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

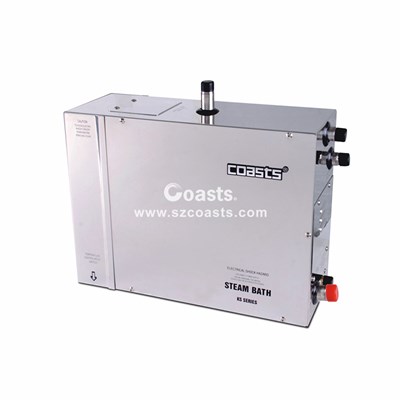

Commercial-use steam generator (COASTS)KSB-C series.

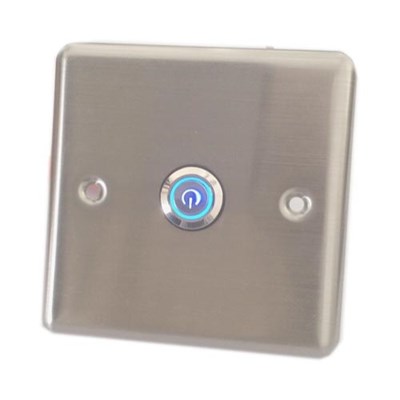

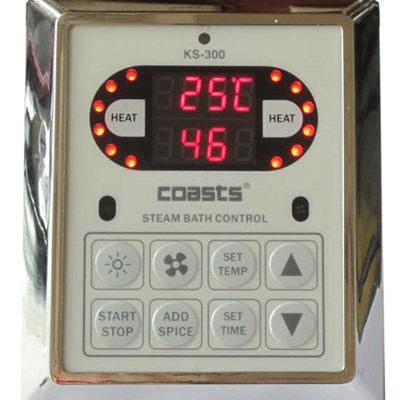

Worked with KS-300 controller and KS30 sub panel.

Model: KSB-30C, KSB-40C, KSB-45C, KSB-50C, KSB-60C, KSB-75C, KSB-90C, KSB-105C, KSB-120C, KSB-150C, KSB-180C, KSB-225C, KSB-240C

COASTS KSB-C Commercial series steam generator with KS-300Adigital control panel and KS30 sub panel,

The Commercial series is an updated version of our Premier steam generator, specialized for heavy duty commercial use. Targeting on the difference from residential bath and the special demands of commercial environment, the Commercial steam generator features dual control panels and Smart-steam function. Administrator could set the operation hour, temperature and supervise the steam generator running status with the main controller KS-300A, while the sub controller KS30 could be mounted inside the steam room for customer operation. With the Smart-steam function, water is preheated to temperature below boiling when no customer presence and immediately start to produce large amount of steam once needed. The Commercial series steam generator is reliable, efficient and energy conservation which makes it an ideal choice for commercial facility.

Parameter:

Model

Output power kW

Power requirement 50/60Hz

Current A

Power wire(copper) N*mm2

Dimensions cm

Packing dimensions cm

Gross weight KG

KSB-30C

3.0

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSB-40C

4.0

220-240V~

18.2

3*2.5

KSB-45C

4.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSB-50C

5.0

220-240V~

22.7

3*2.5

KSB-60C

6.0

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSB-75C

7.5

220-240V~

34.1

3*6.0

380-415V3N~

11.4

5*2.5

KSB-90C

9.0

380-415V3N~

13.6

5*2.5

47.5*18.5*45

53.5*23*59

16.4~17

KSB-105C

10.5

380-415V3N~

15.9

5*2.5

KSB-120C

12.0

380-415V3N~

18.2

5*2.5

KSB-150C

15.0

380-415V3N~

22.7

5*2.5

KSB-180C

18.0

380-415V3N~

27.3

5*4.0

51*18.5*46

56.5*23*59

17.5~18.5

KSB-225C

22.5

380-415V3N~

34.1

5*6.0

KSB-240C

24.0

380-415V3N~

36.4

5*6.0

Notice: Commercial steam generators are equipped with in-generator auto drain system and room-temp-preserving function which is an great function for commercial steam bath. Operator could preset the room temperature and the room-temp-preserving function will maintain the room temperature and start to produce steam output immediately after customer activated the sub-panel, no more waiting time! 3/4/5kw units only have 220~240V versions. Large power units above 9kw only works under three phases system. 9~12kw units could be customized to 220~240V on request.

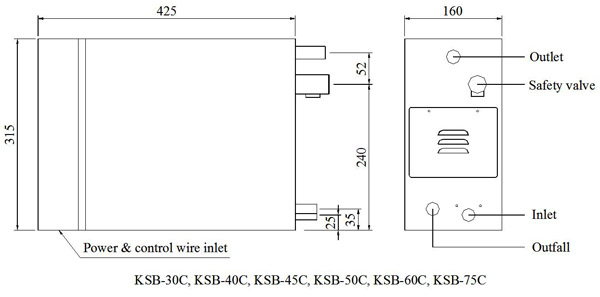

KSB-C小机箱英文

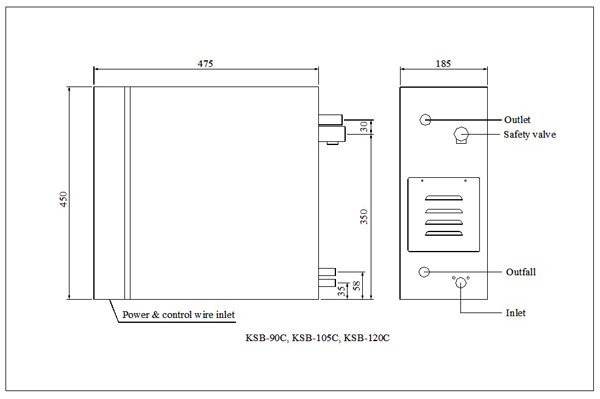

KSB-C中机箱英文

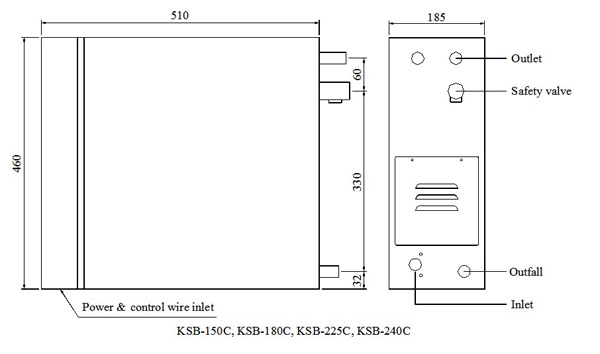

KSB-C大机箱英文
