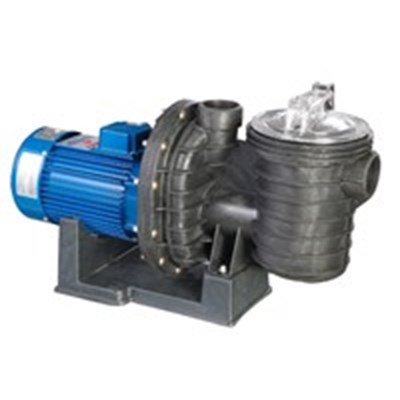

swimming pump series one

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

products feature:

1.The pump designed with high-performance, high water flow, low noise and long feet.

2.The pump's flowing parts with high strength to endure the water pressure while the water is pumping.

3.Energy-saving structured motor running capacitor with protection plate to ensure the safety of working as well as decreasing the noise. Connection of machine and base is to minimize vibration and noise for the better service age.

4.The pump got level F insulation and IPX Level 5 water resistance.

5.High quality mechanical water resistance seal to make sure no water leakage for service life.

6.Good automatically absorbs function, vertical height is 1.5 meters, only need 2 minutes.

Working conditions:

1.Transmission medium temperature 5degrees centigrade to 60 degree

2.Environment temperature below 50 degree.

3.Maximum working pressure 2.5 bar

using coverage:

1.Using in large and medium-sized hydrotherapy pools, swimming pools and spring baths for increasing the water pressures filtering and circulations.

2.Using in seafood breeding pool for sea water circulations and purifications.

3.Using in water feature of gardens, rockeries, waterfall and decoration pool for water treatment circulation and filter

4.Can be used for transmitting non- particles weak corrosive (weak acid, weak alkaline) liquids.

Technical data:

Model

power

(KW/HP)

voltage

(V)

pipe diameter

(Inch)

maximum flow

(L/min)

maximum lift

(m)

phase

(N)

remarks

SYL160-i2-150

1.1/1.5

220

2

350

17

1

with filter basket (2 liters)

SYL160-i3-150

1.1/1.5

380

2

350

17

3

with filter basket (2 liters)

SYL160-i2-200

1.5/2

220

2

460

20

1

with filter basket (2 liters)

SYL160-i3-200

1.5/2

380

2

460

20

3

with filter basket (2 liters)

SYL160-i2-250

1.85/2.5

220

2

505

21

1

with filter basket (2 liters)

SYL160-i2-250

1.85/2.5

380

2

505

21

3

with filter basket (2 liters)

SYL160-i2-300

2.2/3.0

220

2

550

22

1

with filter basket (2 liters)

SYL160-i2-300

2.2/3.0

380

2

550

22

3

with filter basket (2 liters)

SYL160-i2-350

 2.62/3.5

 220V

 2

 600

 23

 1

 with filter basket (2 liters)

SYL160-I3-350

 2.62/3.5

 380V

 2

 600

 23

 3

 with filter basket (2 liters)
