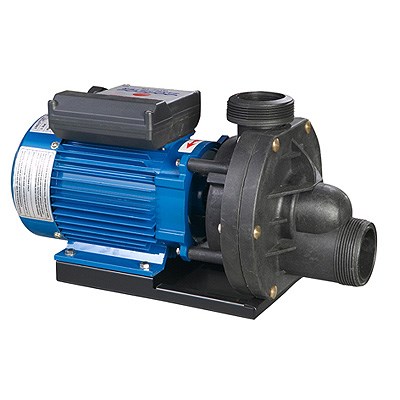

Massage bathtubs pump and SPA cycle pump series

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

products feature:

1.Pump, pump cover, impeller made ​​of high strength engineering plastics, with high quality mechanical seals, TI motor installed with thermal protection to ensure absolute separation of the motor and the transmission medium for continuous operation.

2.Bottom - up water inlet, while the power is shut down, the remained liquid in the pump will be completed pump out.

3.Pump unit is designed with low noise, low vibration and long lasting.

4.pole induction motor, Level F insulation, Level 5 IPX protection.

Working conditions:

1.Transmission medium temperature 5degrees centigrade to 60 degree

2.Environment temperature below 50 degree.

3.Maximum working pressure 2.5 bar

using coverage:

1.The pump is used for massage bathtubs, assembly with massage head.

2.The pump is used for circulation, heating and sanitization for the SPA.

Technical data:

Model

power

(KW/HP)

voltage

(V)

pipe diameter

(Inch)

maximum flow

(L/min)

maximum feet

(m3)

phase

(N)

remarks

SYL160-i2-100*

0.75/1.0

220

1.5

330

12

1

Not with filter basket

SYL160-i2-56*

0.55/0.75

220

1.5

300

10

1

Not with filter basket

SYL160-i2-35*

0.37/0.5

220

1.5

260

9

1

Not with filter basket
