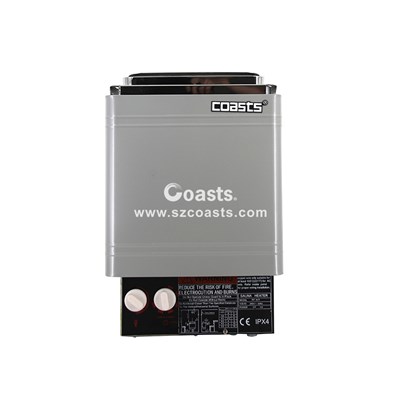

This model is wall-mounted inner control sauna heater
Model:AM20.AM30.AM45.
The model is mini type, Adopted Electronic external controller to achieve time and temperature control, delicate design, compact structure, with high temperature furnace galvanized internal plate, shell plate spray fluorocarbon by electrolysis, using high quality resistance, high thermal-efficiency, corrosion resistance, long life circle. Beautiful and durable, easy to install and operate, beautiful in shape, durable and stable, safe and reliable. Usually suitable for sauna area within six cubic meters of families and small sauna club to use.
technical data
|
Model |
Output Power kW |
Power supply 50/60Hz |
Current A |
Power wire (copper)N*mm |
Dimensions cm |
Packing dimensions cm |
gross weight(kg) |
|
AM30A |
3.0 |
220-240V～ |
13.6 |
3*2.5 |
30.5*20.5*48 |
31.5*22*50 |
7.3 |
|
AM45A |
4.5 |
220-240V～ |
20.5 |
3*2.5 |
30.5*24.5*48 |
32.3*27.5*50.5 |
8.7 |
|
380-415V3N～ |
6.8 |
5*1.5 |
Notic: AM30A is available in 220-240V,AM30A and AM45A are mini type.

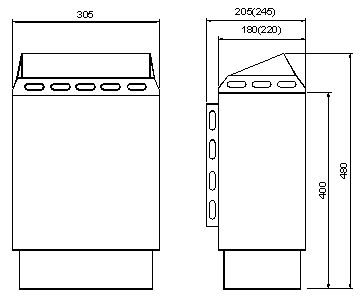

dimension chart:
