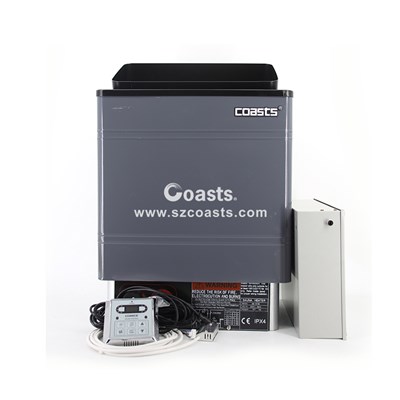

The model of wall-mounted sauna stove, equipped external controller CON3, CON4
Model: AM30MI, AM45MI, AM60MI, AM80MI, AM90MI
The model uses an electronic control to achieve external operating
time and temperature, delicate design, compact structure, with high
temperature furnace galvanized internal plate, shell plate
fluorocarbon spray treatment by electrolysis, using high-quality
resistance, high thermal-efficiency, fast heating, corrosion
resistance, long life; this model is advanced and reasonable
design, fine craftsmanship, beautiful and strong, stable and
reliable, easy to install, simple to operate. Because of its high
value, currently it's the highest share in the market.
technical data:
|
Model |
Output Power kW |
Power supply 50/60Hz |
Current A |
Power wire (copper)N*mm2 |
Dimensions cm |
Packing dimensions cm |
Gross weight kg |
|
AM30MI |
3.0 |
220-240V～ |
13.6 |
3*2.5 |
41*28*57 |
41.5*28.5*59.5 |
11-12.5 |
|
380-415V3N～ |
4.6 |
5*1.5 |
|||||
|
AM45MI |
4.5 |
220-240V～ |
20.5 |
3*2.5 |
|||
|
380-415V3N～ |
6.8 |
5*1.5 |
|||||
|
AM60MI |
6.0 |
220-240V～ |
27.3 |
3*4.0 |
|||
|
380-415V3N～ |
9.1 |
5*1.5 |
|||||
|
AM80MI |
8.0 |
220-240V～ |
36.4 |
3*6.0 |
|||
|
380-415V3N～ |
12.1 |
5*2.5 |
|||||
|
AM90MI |
9.0 |
220-240V～ |
40.9 |
3*10.0 |
|||
|
380-415V3N～ |
13.6 |
5*2.5 |

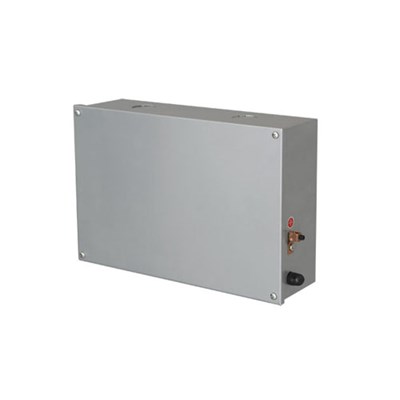

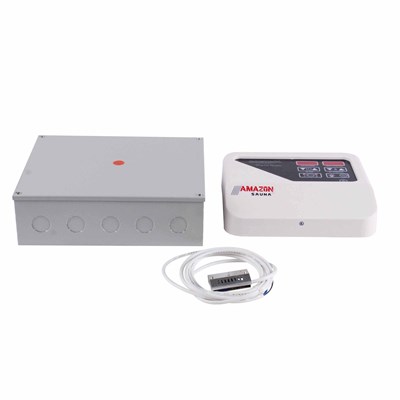

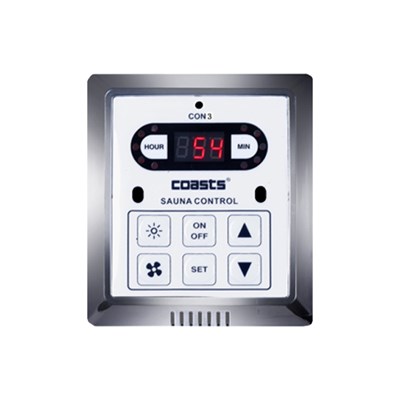

Notice:You could choose CON4 control panel for AM-MI series sauna heater or choose the CON3 slim panel which comes with seperate control box.

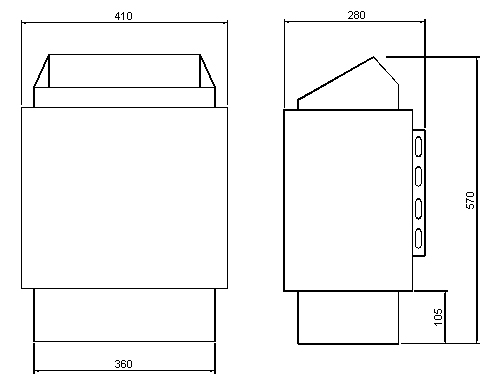

dimension chart:
