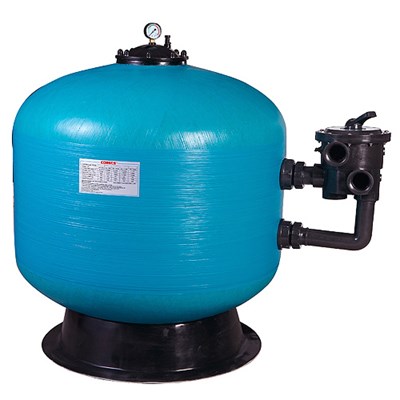

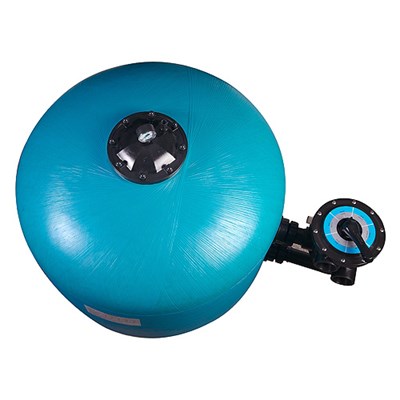

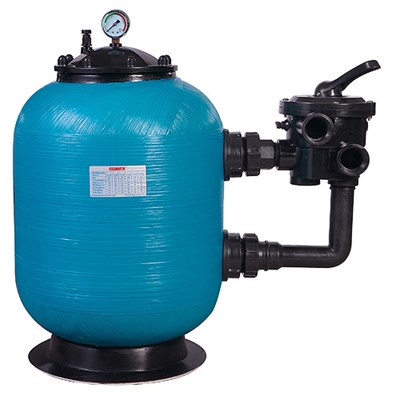

sand filter on the side CF(S) series

update: 2011.03.15
  • Characteristic and specification
  • Material downloading



product coverage:

This product is widely used in swimming pools, massage pools, spring pools and water treatment facilities of water cleansing.

Technical data:

Model

diameter

(mm)

height

(H)

Diameter of pipe (d)

silica sand

(kg)

working pressure

(kg/cm2)

design flow

(m3/h)

Testing pressure

(kg/cm2)

CF(S)-400

400

680

40(1  1/2')

70

2.5

8.5

4

CF(S)-450

450

710

40(1  1/2')

80

2.5

10.7

4

CF(S)-550

550

740

40(1  1/2')

100

2.5

12

4

CF(S)-650

650

800

40(1  1/2')

150

2.5

16.2

4

CF(S)-700

700

800

40(1  1/2')

180

2.5

18

4

CF(S)-800

800

920

50(2')

300

2.5

25.2

4

CF(S)-900

900

1020

50(2')

400

2.5

30

4

CF(S)-1000

1000

1020

50(2')

500

2.5

33

4

CF(S)-1100

1100

1200

50(2')

600

2.5

36

4

CF(S)-1200

1200

1210

50(2')

650

2.5

42

4

Note: maximum temperature  :50℃(122oF)
