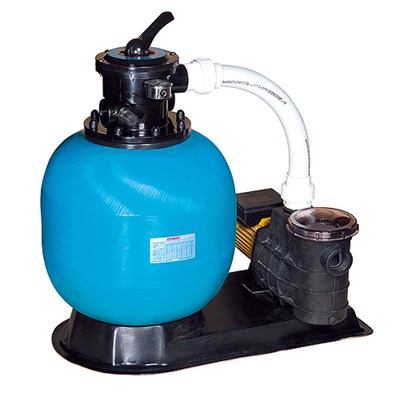

integrative sand filter FC series

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

The Multi-function switch is installed on the top of the sand filter. The inner core is made of resin and fiberglass and wrapped with high intensity fiberglass。

This product is widely used in small swimming pools, the garden pool and similar public pools of water cleansing.

products feature:

The Multi-function switch is installed on the top of the sand filter, it's easy to move. Not only easy to use and convenient install but also have the feature of sand filter on the top.

product coverage:

This product is widely used in swimming pools, the garden fountain, fish pools and water cleansing.

Technical data:

Model

diameter

(mm)

height

(m)

filtration area

(m2)

pipe size

(mm)

silica sand

(kg)

working pressure

(kg/cm2)

design flow

(m3/h)

quartz sand

(kg)

FC-350

350

700

0.1

40

1100

MAX2.5

4.3

22

FC-400

400

725

0.14

40

1500

MAX2.5

6

28

FC-450

450

815

0.16

40

2300

MAX2.5

7.6

50

FC-500

500

840

0.22

40

3500

MAX2.5

9.5

80

FC-650

650

960

0.3

40

4100

MAX2.5

14

160

FC-700

700

970

0.37

40

5700

MAX2.5

15.6

220

Note: maximum temperature  :50℃(122oF)
