sand filter on the top CF(T) series

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

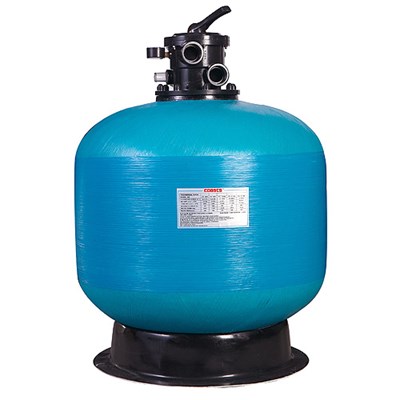

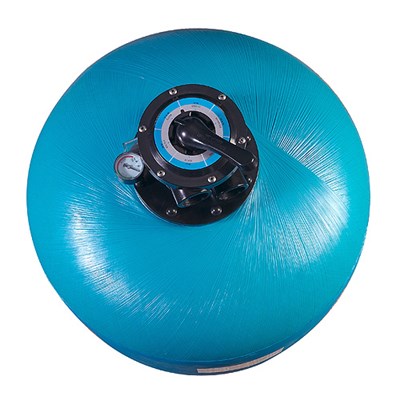

The Multi-function switch is installed on the top of the sand filter. The inner core is made of high quality resin and fiberglass and wrapped with high intensity fiberglass.

This product is widely used in swimming pools, massage pools, spring pools and water treatment facilities of water cleansing.

products feature:

The Multi-function switch is installed on the top of the sand filter. The inner core is made of high quality resin and fiberglass and wrapped with high intensity fiberglass.


1.Sturdy and durable, have good filter effects。
2.anti - UV  anti- aging。
3.Multi-function switch (  please see the specification)。
4.anti- chemical corrosion。
5.With the mirror for observation of water and pressure gauge for monitor the operation.

6.With the bottom valves for easy change the quartz sand。

product coverage:

This product is widely used in swimming pools, massage pools, spring pools and water treatment facilities of water cleansing.

Technical data:

Model

diameter

(mm)

height

(m)

filtration area

(m2)

pipe size

(Inch)

silica sand

(kg)

working pressure

(kg/cm2)

design flow

(m3/h)

Testing pressure

(kg/cm2)

CF(T)-400

400

710

0.11

40(11/2')

35

MAX2.5

6

4

CF(T)-450

450

805

0.14

40(11/2')

50

MAX2.5

7.6

4

CF(T)-550

550

850

0.24

40(11/2')

90

MAX2.5

11.5

4

CF(T)-650

650

970

0.30

40(11/2')

150

MAX2.5

16.5

4

CF(T)-700

700

970

0.37

40(11/2')

220

MAX2.5

18

4

CF(T)-800

800

1160

0.50

50(2')

280

MAX2.5

24

4

CF(T)-900

900

1165

0.64

50(2')

350

MAX2.5

30

4

CF(T)-1000

1000

1280

0.79

50(2')

450

MAX2.5

32

4

CF(T)-1100

1100

1340

0.98

50(2')

525

MAX2.5

36

4

CF(T)-1200

1200

1410

1.13

50(2')

600

MAX2.5

42

4

Note: maximum temperature  :50℃(122oF)
