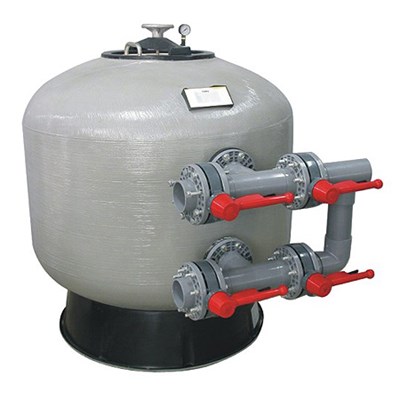

commercial big sand filter CF(S) series

update: 2011.03.15
  • Characteristic and specification
  • Material downloading

products feature:

According to the design of switch, the top cover of the product consist a overhead lines with rotating disk compression plate for the ease of switch on and off.  The distance of filter basket and water diffuser is increased to enhance the effect of filtering wate

product coverage:

The products widely used in large commercial swimming pools, water world, water aquarium and water treatment facilities.

Technical data:

Model

diameter

(mm)

height

(m)

filtration area

(m2)

pipe size

(Inch)

silica sand

(kg)

working pressure

(kg/cm2)

design flow

(m3/h)

Testing pressure

(kg/cm2)

CF(S)-1200

1200

1450

1.13

3

1100

2.5

56

4

CF(S)-1400

1400

1520

1.53

4

1500

2.5

77

4

CF(S)-1600

1600

1760

2.00

4

2300

2.5

100

4

CF(S)-1800

1800

1940

2.50

6

3500

2.5

125

4

CF(S)-2000

2000

1960

3.14

6

4100

2.5

156

4

Note: maximum temperature  :50℃(122oF)
